Tata LPT 4225

Tata LPT 4225 Key Features

Tata LPT 4225 Variants

The Tata LPT 4225 is offered in 2 variants - the base model of Tata LPT 4225 is 4038310 and the top variant is 4065330 which come with Diesel, 249 HP, 6700 cc and 300 L.

Tata LPT 4225 Detailed Overview

• Exterior

  Since the Tata LPT 4225 is a cowl-only truck, there is not much to describe the overall design of the truck in detail. The truck gets a half-profile cowl design, which can be altered to make a proper cabin and deck lid at the back. The cowl of the Tata LPT 4225 has an inward-raked design, which is covered with a wide rectangular grille with a greyish finish for it. This wide grille is divided into three parts, with only the central part of the grille having open slats for ventilation. The outer parts of the grille have rounded edges. The front bumper of the Tata LPT 4225 is a metal unit, which is painted in black and houses the main headlamps with turn indicators on the outer corners. The driver’s cockpit here is covered with a soft top, which is removable.

  Summary

  The Tata LPT 4225 gets a soft top cover for the driver's cockpit and a half-profile cowl, with the main grille on it and headlamps on the black bumper at the bottom.

• Interior

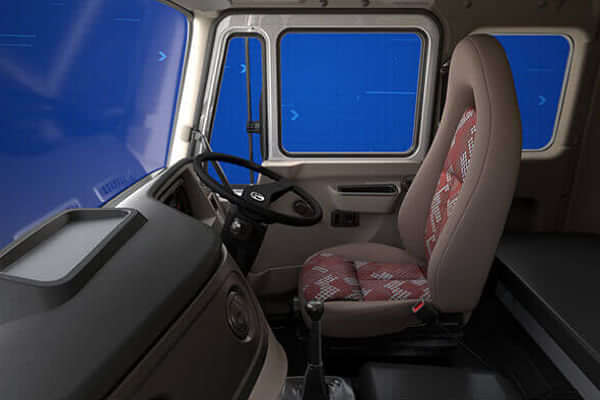

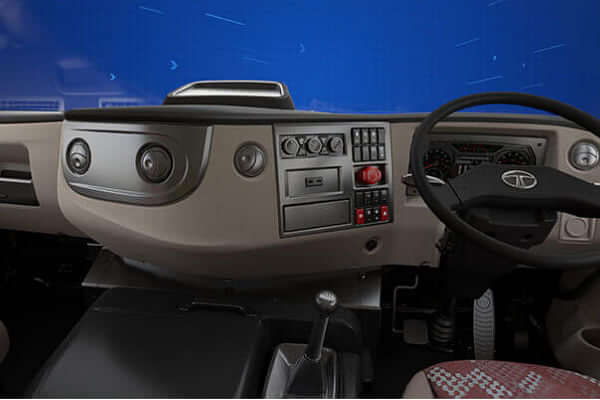

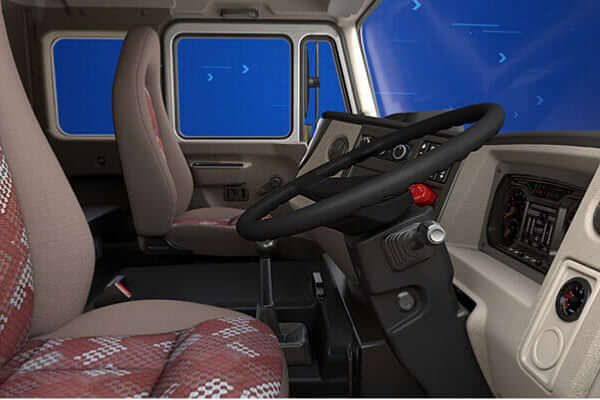

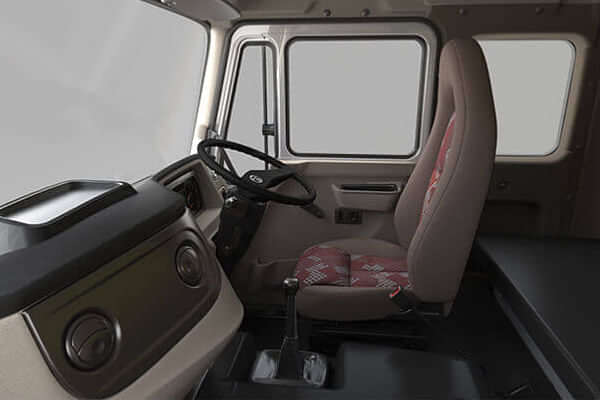

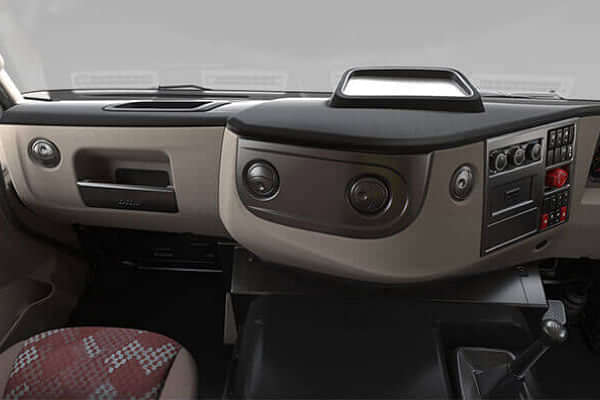

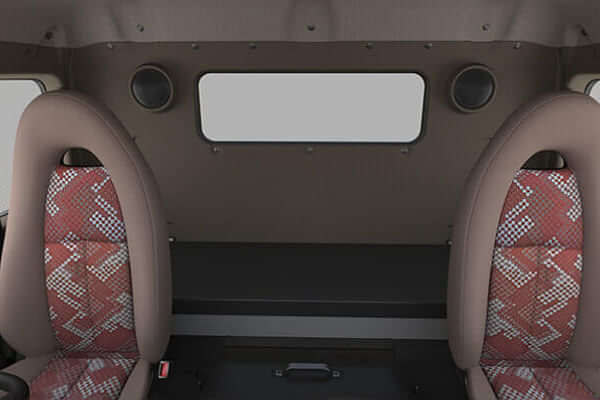

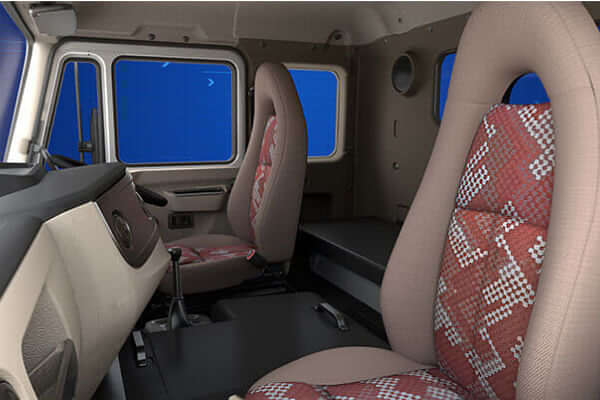

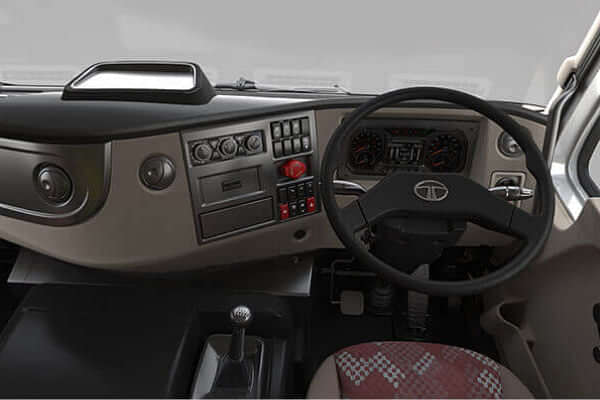

  The Tata LPT 4225 has a brownish grey cabin, which has a very unique curved design for the dashboard towards the centre. This rounded centre console of the dashboard has two faces – while the part facing the driver’s cockpit is adorned with switches for AC and other systems, the other part facing the co-driver’s side has a U-shaped black panel housing two rounded AC vents. The driver’s cockpit of the Tata LPT 4225 has a two-spoke steering wheel with a comprehensive steering console.

  Summary

  The Tata LPT 4225 gets a brownish grey theme for the dashboard, which gets a curved design with parts facing both driver’s side and the co-drivers side.

• Features

  The Tata LPT 4225 is devoid of a proper body over its cowl, though it gets a few features on board in its open cabin, such as blowers for ventilation, power steering with tilt and telescopic adjustability and a few storage spaces.

  Summary

  The open-body design of the Tata LPT 4225 gets a few storage spaces, tilt and telescopic adjustable power steering and blowers for air ventilation.

• Engine and Performance

  Powering the Tata LPT 4225 is a 6.7-litre six-cylinder Cummins ISBe diesel engine, which is one of the biggest and most powerful diesel engines from Tata Motors for its heavy-duty commercial vehicles. Paired to a G950 6-speed manual gearbox, this large-capacity engine pumps out 250 PS of maximum power output and 950 Nm of maximum torque output.

  Summary

  The 6.7-litre six-cylinder Cummins ISBe diesel engine of the Tata LPT 4225 is paired to a 6-speed manual gearbox and produces 250 PS of power and 950 Nm of torque.

• Suspension and Brakes

  At the front, the Tata LPT 4225 gets a Heavy Duty 7T Reverse Elliot Type front axle and Single Reduction RA110HD at RFWD and RA 910 at RRWD rear axle, with heavy-duty leaf springs at both the ends. The truck rides on 295/90 R20 tyres.

  Summary

  Riding on 295/90 R20 tyres, the Tata LPT 4225 gets heavy-duty leaf springs at both ends.

• Payload

  The Tata LPT 4225 is available in a single variant, which has a wheelbase of 6800mm and a total length of 9144mm. This truck has a gross weight of 42,000 kg and a payload capacity of up to 32 tons with a well-built load body on its frame. The truck comes equipped with 365 litres of fuel tank capacity.

  Summary

  The Tata LPT 4225 has a payload capacity of 32 tons and a gross weight of 42 tons.
